Hydraulic & Electric Levelling Systems

For Caravans and Motorhomes

AMPLO Hydraulic Levelling

AMPLO Hydraulic Levelling System

Benefits include:

  • Fully Automatic levelling

  • No need to fuss with jacks, ramps or blocks of wood

  • Jacks can also be operated individually, helping with precise levelling on soft or frozen ground

  • User interface via simple control panel

The standard kit includes:

  • 4 telescopic cylinders

  • 1 hydraulic mini control unit with manual emergency pump

  • 1 service display

  • 1 remote control for cylinder operation with auto-leveling button and manual function

  • 1 level sensor

  • 1 electrical wiring kit

  • 1 hydraulic connection kit with tubes and fittings

  • 1 5-liter oil reservoir with viscosity index for temperatures ranging from -20°C to +80°C

Technical Specs

AMPLO Levelling

What does the kit look like?

E&P Hydraulics

E&P Hydraulic Levelling System

  • Level in less than two minutes

  • Effortlessly level at the press of a button

  • Fully automatic hydraulic jacks and corner steadies, providing 6 support points

  • Sturdy position for added comfort

  • Improved function of fridges and shower trays

  • Hydraulic retraction for boggy or frozen ground

Benefits include:

  • Time to level: two minutes

  • Can level and lift caravans up to 3.5 tonnes

  • Suitable for single or twin axle caravans

  • Less than 30kg net weight for the whole system, including the replaced corner steadies.

  • Large, pivoting support plates for the corner steadies

  • 240 watt hydraulic motor

  • 12 volt operating voltage

  • Very low current draw

  • Powered by the leisure battery

  • Can be retrofitted to nearly any caravan

What comes with the system:

  • 4 AL-KO Big Foot hydraulically operated corner steadies

  • 2 hydraulic jacks

  • Detachable touchscreen control panel

Technical Specs

What does the kit look like?

E&P Levelling
Redfoot Levelling

Redfoot Electric Levelling Sytem

• One touch, push button Auto-Level operation
• Prevents vehicle rocking and motion
• 4x included stabiliser pads to prevent sinking
• Simple plug and play wiring installation
• Reduces levelling time
• Huge lifting capacity up to 5 tonnes and a system weight of 60-70kg
• Push button ‘All-Retract’ feature
• Remote radio frequency operation
• Auto level display panel
• Audible and visual prompts notify user when levelling is in progress and complete
• Stow jacks quickly and easily
• Standard with manual override

Benefits and Specifications:

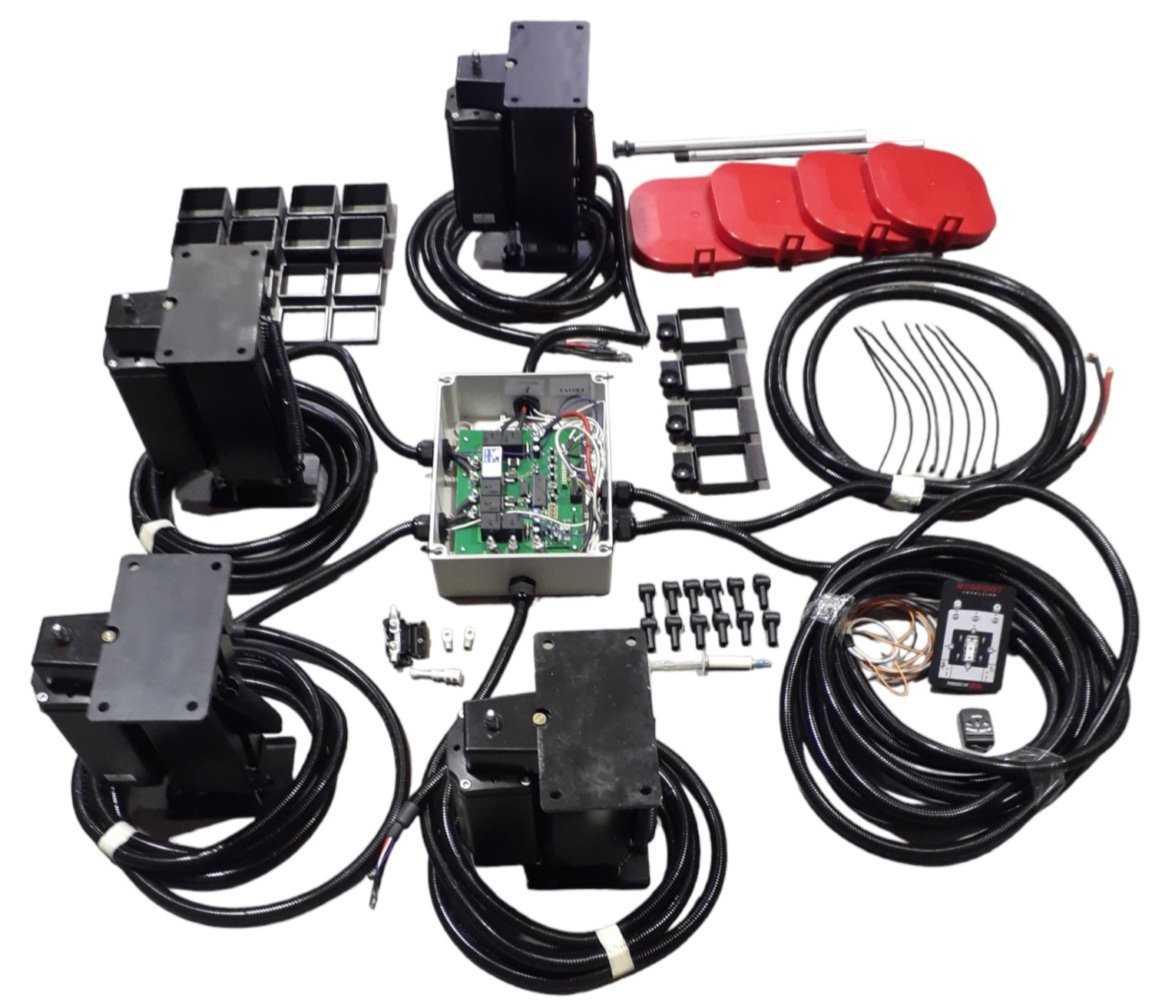

What does the kit look like?

An array of electrical and mechanical components including black boxes, red pads, wires, circuit boards, and various connectors, likely parts of an industrial or robotic system.
